JSD Network Editor

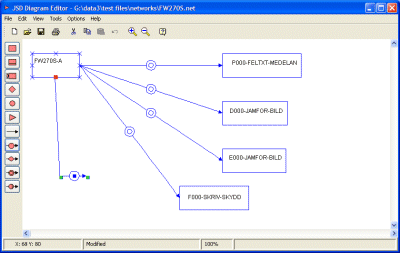

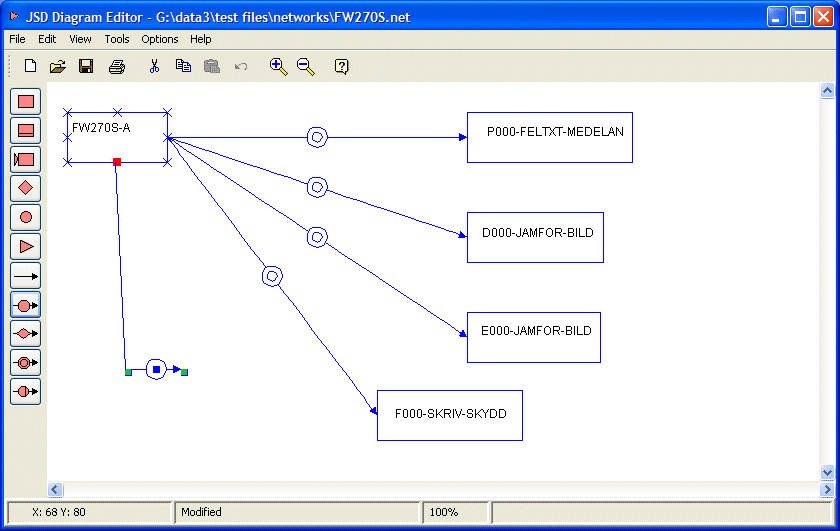

The JSD Network Editor is a CASE tool that supports the Jackson System Development method for designing computer software systems. The Network Editor provides an extensive visual interface, which allows JSD specification and implementation network diagrams to be constructed. The JSP Structure Editor, can then be used to edit the internal structure of the processes in the network diagrams.
The JSD Network Editor is a component of the Jackson Workbench suite. It is also available as a stand-alone tool.
- Rich graphical user-interface.
- Provides a high level view of the system.
- Provides an interface through to the structure editor by clicking on processes.
- Automatic transformation to the System Implementation Diagram (SID) shows the call hierarchy in the implementation of the system.
