Network Editor : User Interface : Pop-up Menus : Data Stream Menu

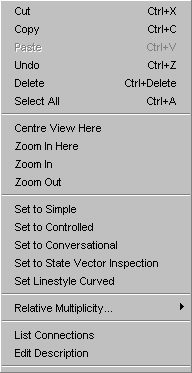

The Data Stream Popup Menu is shown below:

The entries are described below:

Cut

Go here.

Copy

Go here.

Paste

Go here.

Undo

Go here.

Delete

Go here.

Select All

Go here.

Centre View Here

Go here.

Zoom In Here

Go here.

Zoom In

Go here.

Zoom Out

Go here.

Set to Simple

The Data Stream is changed to be a Simple Data Stream from whatever it currently is.

Set to Controlled

The Data Stream is changed to be a Controlled Data Stream from whatever it currently is.

Set to Conversational

The Data Stream is changed to be a Conversational Data Stream from whatever it currently is.

Set to State Vector Inspection

The Data Stream is changed to be a State Vector Inspection from whatever it currently is.

Set Linestyle Curved

The default line style is 'Straight'. This means that when line Drag Boxes are moved the line is redraw straight between the two of them. If this option is choosen then the line style is changed to 'Curved'. If the line style is changed to Curved then when the line is selected two 'Curved Line Boxes' are also displayed and dragging these enables the selected line to be made curvy. The Curved Line Boxes are initially coloured yellow but this may be changed by the user as described here. Below is an example of a curved line that has been selected to show the Curved Line Boxes.

Relative Multiplicity

Describes the multiplicity relationship between two connected (by a Data Stream) Processes. The choices are:

and when applied will have the following effects to the Simple Data Stream:

List Connections

Produces a dialogue with connection statistics.

Edit Description

Causes a dialogue box to be displayed that allows the entry of the textual description for the Data Stream.
